WS05C Area Monitors
Specifications

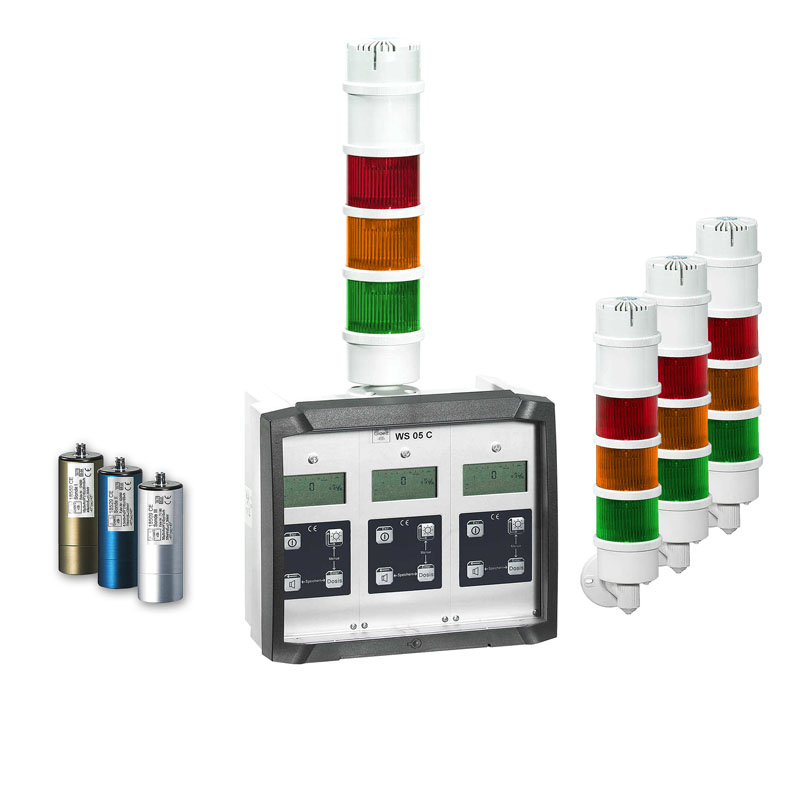

GRAETZ WS05C-1 / C-2 / C-3 Area Monitors
The area monitors WS05C-1 / WS05C-2 and WS05C-3 are stationary room monitoring systems for the dose rate measurement of γ-radiation and X-rays, preferably used for the permanent monitoring of isotope laboratories, radiotherapy rooms, storage rooms for radioactive materials, etc..
| WS05C-1: | Area monitor (1 measuring channel) with RS232-interface for the operation with any probe of the GRAETZ-programme. |
| WS05C-2: | Area monitor (2 measuring channels) with RS232-interface for one measuring channel, for the simultaneous operation of max. 2 different or similar probes – any of the GRAETZ-programme. |
| WS05C-3: | Area monitor (3 measuring channels) with RS232-interface for one measuring channel, for the simultaneous operation of max. 3 different or similar probes – any of the GRAETZ-programme. |
Each measuring channel indicates the measured values on a digital, illuminated LCdisplay (60x30 mm). For each measuring channel four individual dose rate alarm thresholds are free programmable over the whole measuring range of the connected probes.
When using γ-probes, the dose rate shown on the LC-Display is Sv/h. When an end-window probe for α-/β-measurements or a NaI-scintillation probe for β-/γ- measurements is connected, the measured value is displayed in cps. Additionally to the digital display, the dose rate is also indicated in analog form by a logarithmic bar graph.
The instrument is autoranging. When a measuring channel triggers a dose rate alarm, the integrated alarm light of the WS05C gives an optical and acoustical alarm. In the standard version: green --> “ready for operation”, orange --> “alarm threshold exceeded” / red --> “error” (e.g. defective probe). The red LED situated above the display indicates by which measuring channel the alarm has been triggered.
For connecting the WS05C with a computer, an RS232-interface for one measuring channel is available
Options
• Relay output for an additional external alarm lamp for each measuring channel or a potential free relay output for each measuring channel instead of the relay output for the external alarm lamps (max. switching voltage/current: 24V, 20 mA).
• Acoustic alarm disconnectible: only triggered when an alarm threshold is exceeded and the monitored room’s door is open.
• Emergency power supply (300W) for the uninterruptible operation of the WS05C in case of mains failure.
• External alarm lamps (optical/acoustical)
• Probe cable (standard length: 1,25 m), extension up to 100 m
• Special versions upon request
| Technical Data | |
|---|---|
| Types: |
WS05C-1 for the connection of one probe (1 channel)
WS05C-2 for the simultaneous connection of max. 2 probes ( 2 channels) WS05C-3 for the simultaneous connection of max. 3 probes (3 channels)
|
| Probes: | The probes are preferably connected by means of a probe cable (up to 100 m) or directly to the sockets of the WS05C. |
| Measurand: | Ambient dose rate equivalent rate Ḣ*(10) for CE-probes |
| Measuring Accuracy: | ≤ +/-10% |
| Display: | each measuring channel is equipped with an illuminated LC-display |
| Indication: |
- digital indication in Sv/h or cps, depending on the connected probe
- analog indication by a logarithmic bar graph
|
| Alarm: |
- probe failure alarm
- dose rate alarm thresholds 1 - 4
- dose alarm thresholds 1 - 4
|
| Alarm Signals: |
- integrated optical/acoustical signal, triggered when a connected probe signalizes a dose rate alarm (orange) and/or an error (red)
- red LED for alarm indication when an alarm thresholds is triggered (at each measuring channel)
|
| Interface: | RS232 for one measuring channel (WS05C-2 / WS05C-3 first measuring channel) |
| Dose rate alarm thresholds: | For each measuring channel 4 dose rate alarm thresholds free programmable over the whole measuring range of the connected probe(s) |
| Dose alarm thresholds: | For each measuring channel 4 dose alarm thresholds free programmable over the whole measuring range of the connected probe(s) |
| Temperature range: |
0 °C up to +40 °C for the area monitor
-30 °C up to +60 °C for the probes
|
| Humidity: | max. 90% relative humidity |
| Power Supply: | 90-260V AC 200 mA max. 50/60 Hz |
| Dimensions: | 260 mm x 230 (455) mm x 150 mm |
| Weight: | Approx. 2,8 kg |
| Housing: | plastic, high-impact resistant |
| Interface: | RS232 for one measuring channel (WS05C-2 / WS05C-3 --> first measuring channel) |
Available probes:
The PTB-approval of the probes is only valid when used together with the dose rate meter X5C plus.
| Probe Type | Measuring Range | PTB-approved measuring range 1) |
|---|---|---|
| 18545 CE | 0 nSv/h – 200 µSv/h | 150 nSv/h – 200 µSv/h (γ-radiation and X-rays) |
| 18550 CE | 0 nSv/h – 20 mSv/h | 10 µSv/h – 20 mSv/h (γ-radiation and X-rays) |
| 18529 CE | 0 µSv/h – 10 Sv/h | 0,5 mSv/h – 10 Sv/h (γ-radiation and X-rays) |
| 18509 CE | 0 µSv/h – 1 Sv/h | 50 µSv/h – 1 Sv/h (γ-radiation and X-rays) |
| 18526 D | cps, α, β, γ - radiation | |
| Nal 2002 Scintillation Probe | cps,β / γ - radiation |
