Probes for X5C plus system

Specifications

Probes for X5C plus system

• PTB-approved gamma probes for the measurand * (10) (ambient dose equivalent rate) and pulse probes (see back page) for extending the measuring range of the basic unit • for measurements at „hard-to-get-to“ places
• Telescope Probe DE for measurements from a safe distance at high dose rates (see separate documentation)

PTB-approved gamma probes

• automatic probe identification by the basic unit
• connectable to the basic unit either directly or by using a probe cable up to a max. length of 100 m (standard length: 1,25 m)
• the basic unit automatically takes over the probe specific calibration factor
• the basic unit either displays the measurand H * (10) or Hx for all dose rate probes; in case of connected PTB-approved H* (10) dose rate probes the PTBsymbol additionally appears on the display
• the basic unit automatically displays the detected type of radiation
• underwater measurements up to a depth of 30 m by using the pressurized water protective housing

PTB approved probes

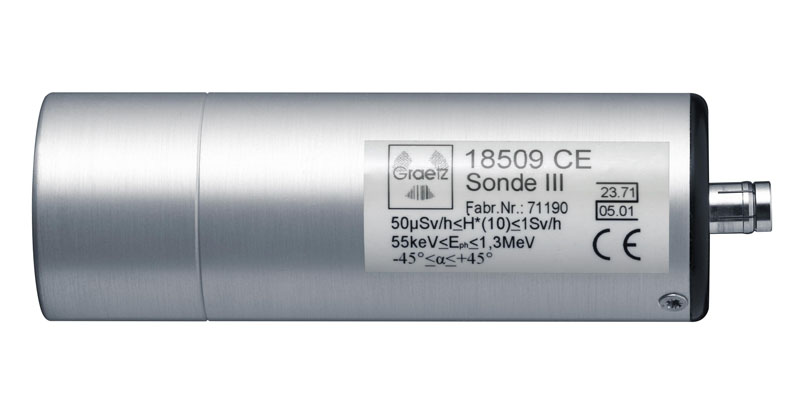

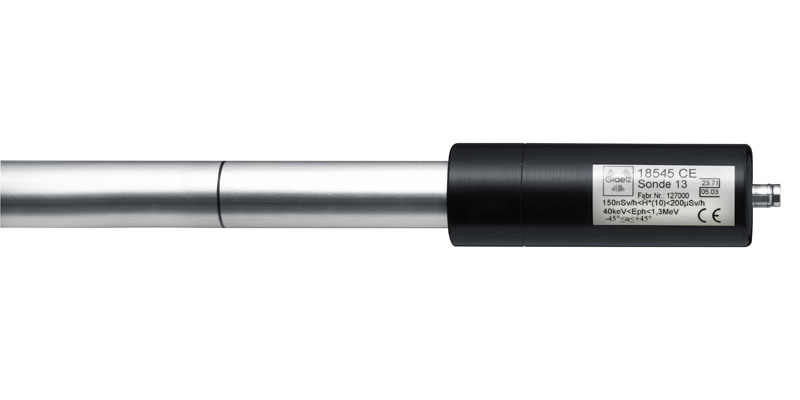

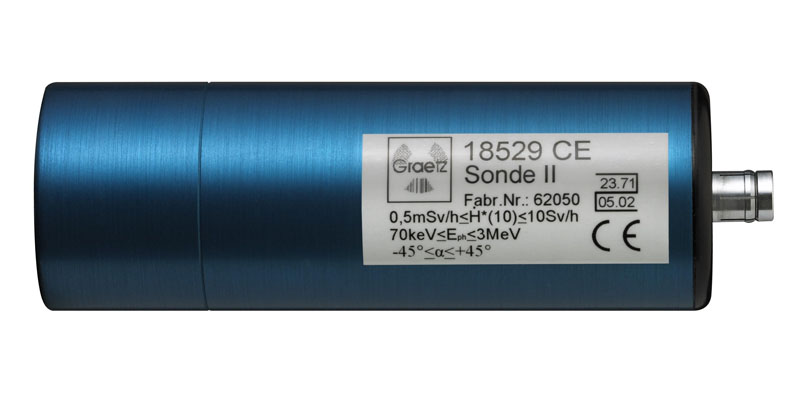

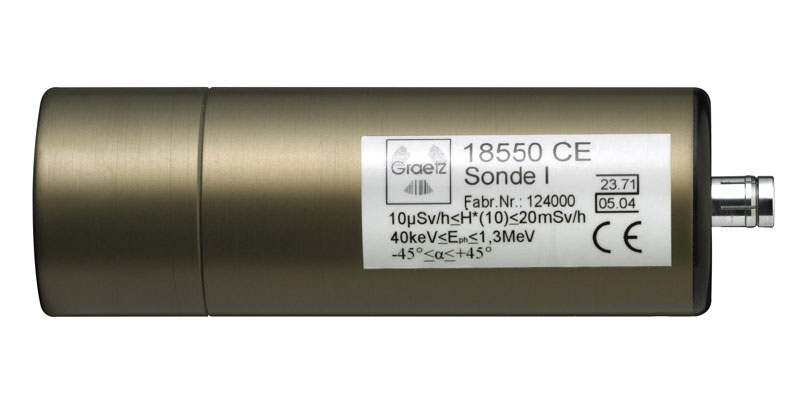

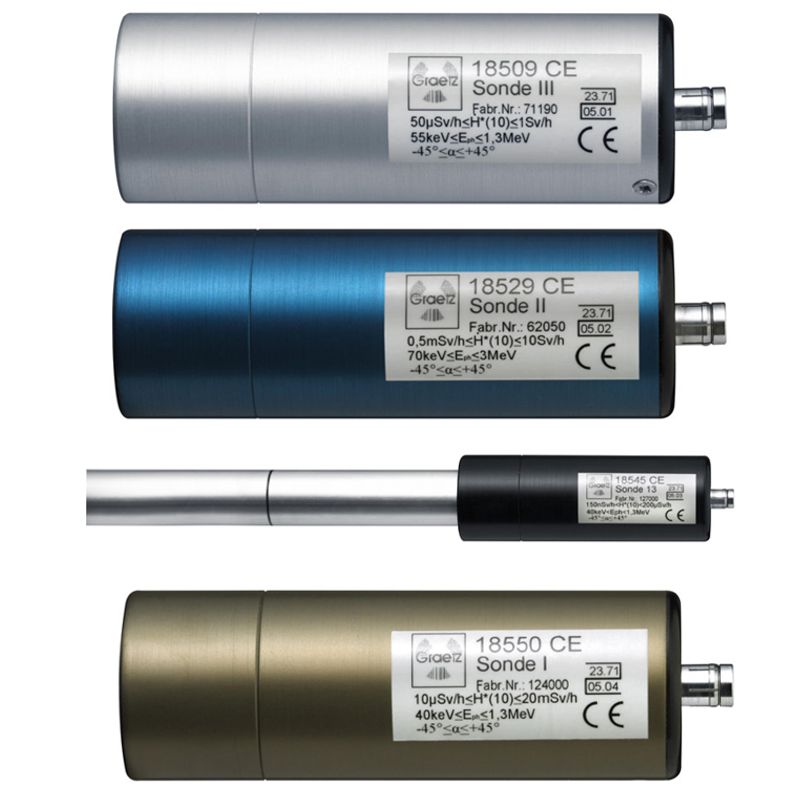

	18509 CE	18529 CE	18545 CE	18550 CE
Energy Range:	55 keV - 1,3 MeV	70 keV - 3,0 MeV	40 keV - 1,3 MeV	40 keV - 1,3 MeV
Measuring range:	50 μSv/h - 1 Sv/h	0,5 mSv/h - 10 Sv/h	150 nSv/h - 200 μSv/h	10 μSv/h - 20 mSv/h
Measuring Size:	H*(10)	H*(10)	H*(10)	H*(10)
Dimensions:	L: 110 mm ø40 mm	L: 110 mm ø40 mm	L: 345 mm ø25/40 mm	L: 110 mm ø40 mm
Weight	150 g	150 g	380 g	150 g

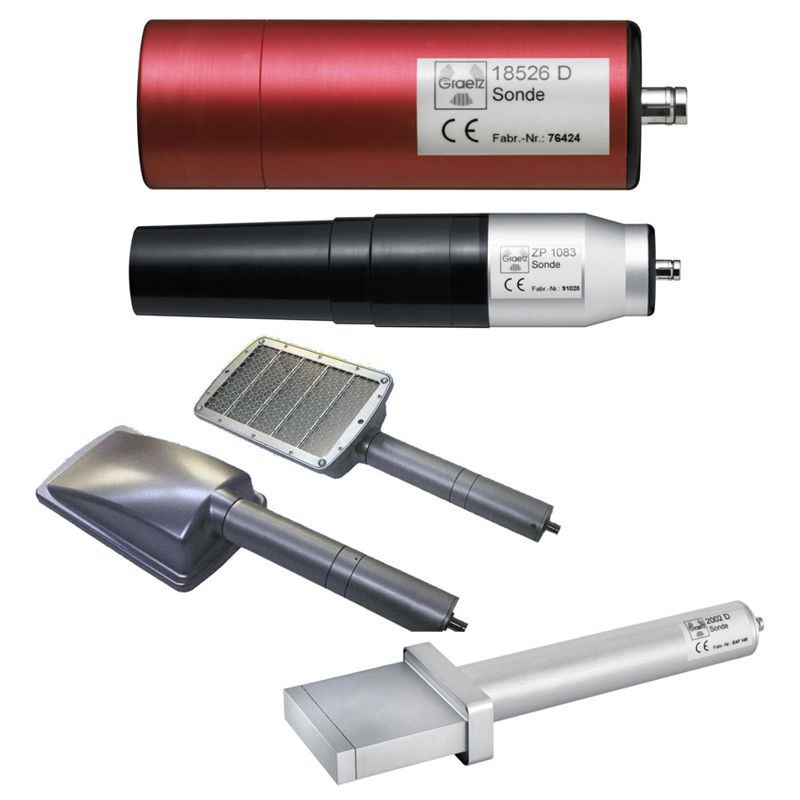

Pulse probes

• probes for the detection of α-, β- and γ-contaminations
• high sensitive scintillation probe for the detection of β-/γ-radiation

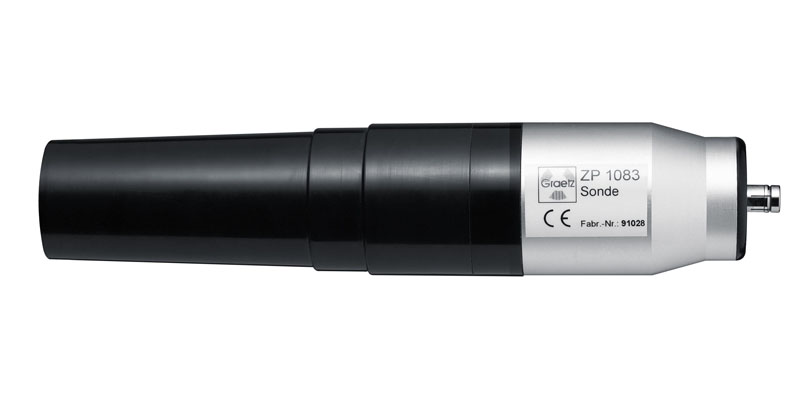

• glass immersion counter tube ZP1083 D for measurements in liquids
• automatic probe identification by the basic unit
• connectable to the basic unit either directly or by using a probe cable up to a max. length of 100 m (standard length: 1,25 m)
• the basic unit automatically takes over the probe specific calibration factor
• the basic unit automatically displays the detected type of radiation
• indication range on the basic unit 0-20 Kcps
• difference between gamma and pulse probes: basic unit effects a pulse rate measurement instead of dose rate measurement and a summation of triggered counts instead of dose measurement
• instead of the four dose and dose rate alarm thresholds, a pulse respectively a pulse rate alarm threshold can be set at the basic unit
• temperature range of the GM-probes: -30 °C up to +60 °C

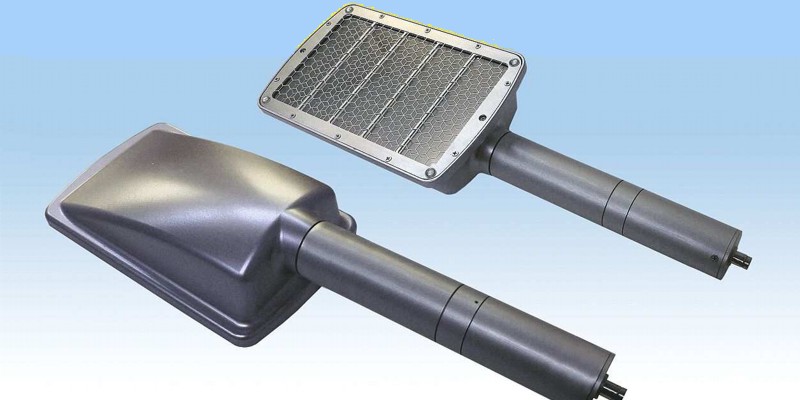

• temperature range ABG170: -10 °C up to 40 °C
• temperature range of the Scintillation Probe: -20 °C up to +50 °C; max. temperature change 10 °C/h

PTB approved probes

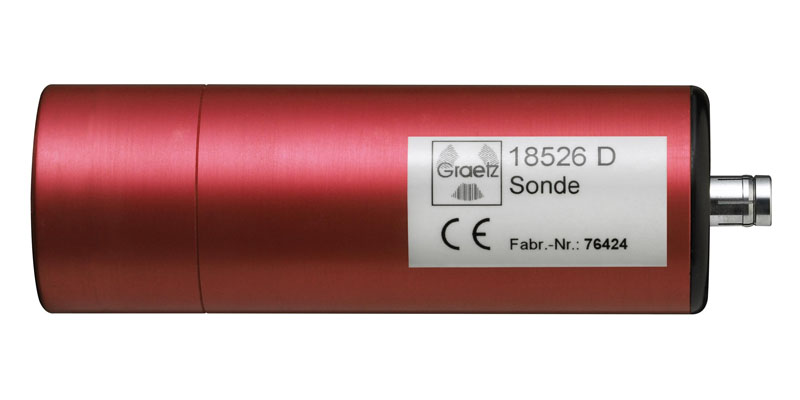

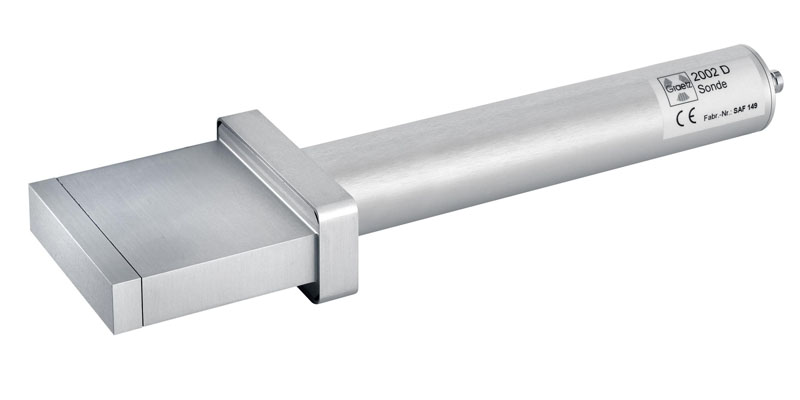

	18526 D	ZP1083 D	ABG170	Scintillation probe 2002 D
Type of radiation:	α, β, γ	β, γ	α, β, γ	β, γ
Detector	GM tube	GM tube	plastic scintillator	NaJ(Tl) scintillator
	effective surface 6,1 cm2	effective length 64 mm	effective surface 170 cm2	effective volume (70x70x13) mm
Background (counts/min) at 0,1 μSv/h	25	15	900-1500	6000
Dimensions	L: 110 mm ø40 mm	L: 210 mm ø50 mm	390x125x75 mm (handle included)	80x85x35 mm (with 200 mm handle)
Weight	150 g	350 g	790 g	530 g
