QNix 4500
Specifications
QNix 4500: The Bestseller for standard applications.
QNix® 4500 was developed particularly for measuring tasks in the automobile as well as fastidious painting applications in other industries. This compact gauge permits extremely precise measurements of lacquer and corrosion protection
thicknesses, both on steel and iron as well as on non-ferrous metals such as aluminum, zinc, copper. With the practiceoriented product properties, professionals immediately recognize the handwriting of AUTOMATION Dr. Nix:
Extremly Precise
High measuring accuracy over the entire measuring range.
Simple Operation
No calibration. Only one button. One-hand operation.
Innovative Technology
Proven Hall sensor and Eddy Current technology. Integrated measuring probe without cables or plugs.
Broad Spectrum of Use
Dual probe for measurements on steel and non-ferrous metals.
Protective Measuring
Polished ruby tip to protect both probe and surface to be measured.
Simply Perfect

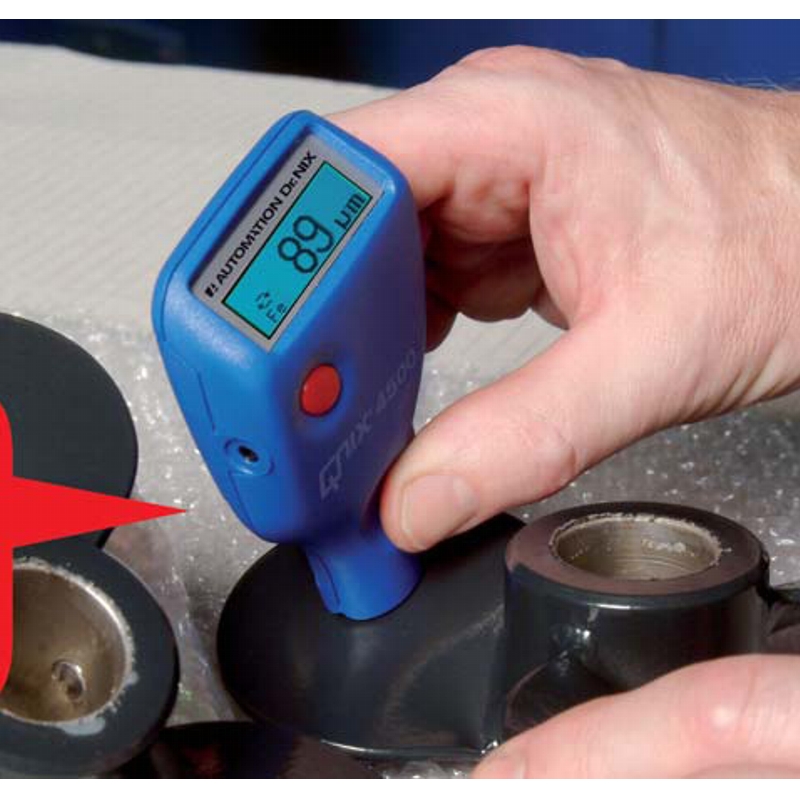

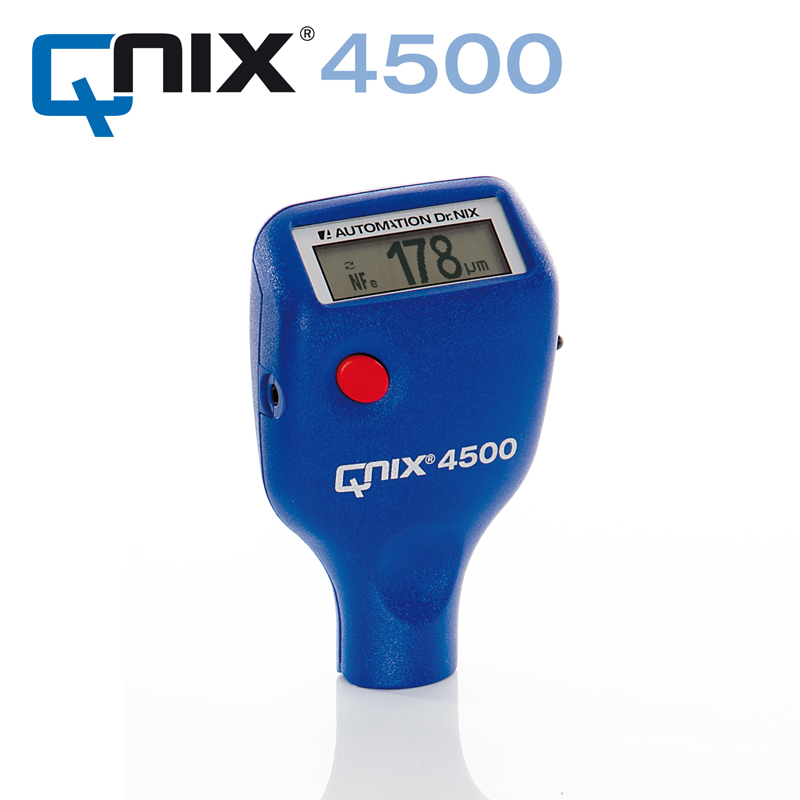

With the QNix® 4500 precise measurements on steel, iron and non-ferrous metals become simply perfect. Change between the measuring procedures by simply pressing on the button. No calibration. With high precision over the entire measuring range: Fe 3000 μm and NFe 2000 μm. The sensitive measuring probe of the extremely small, light and handy QNix® 4500 is integrated into the gauge. It is equipped with a readable LCD that informs about readings, battery condition, mode of operation and serial number.
- Gauge for standard applications - simple, fast measurements.
- One-hand operation. Only one button.No calibration.
- Automatic On/Off switching.
- High precision over the entire measuring range: Fe 3000 μm and NFe 2000 μm.
- Broad spectrum of use for nondestructive measurements on steel, iron and non-ferrous metals such as aluminum, zinc, copper and brass.
- Compact design with integrated probe.
- Innovative, proven technology: Hall sensor and Eddy Current technology.
- Acoustic signal for confirmation that measurement has been taken.
- Non wearing ruby probe tip for long term use.

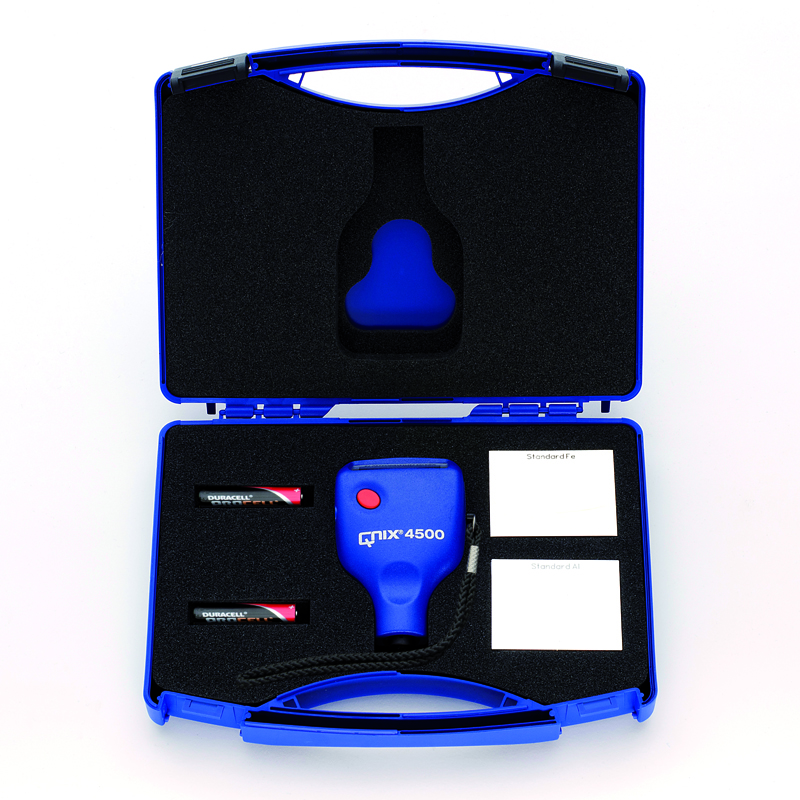

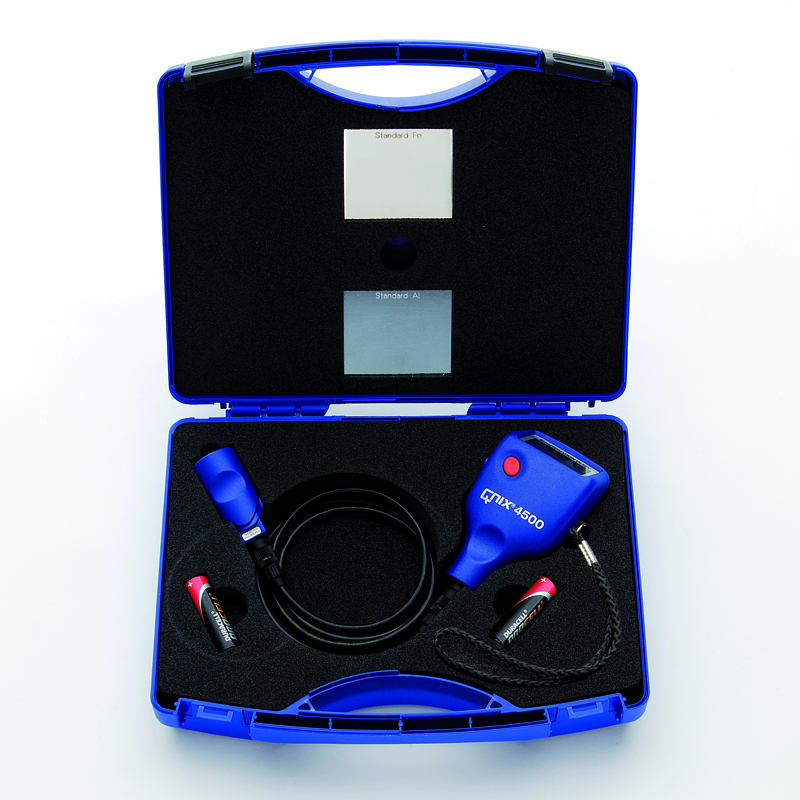

- Coating thickness gauge QNix® 4500 (or QNix® 4200).
- Gauge carrying case with referenceplates.
- 2 x 1,5 V Mignon Batteries (Type AA Alkali).
- Test Certificate.
- Instruction manual.
| Principle of operation | Two magnetic measuring principle: Fe:Magnetic Flux / Hall Effect (Fe*) NFe: Eddy Current (NFe*) |
|||||||||||||||
| Standards | DIN EN ISO 2808, ISO 2178, ASTM B 499, ASTM D 7091, ISO 2360 | |||||||||||||||

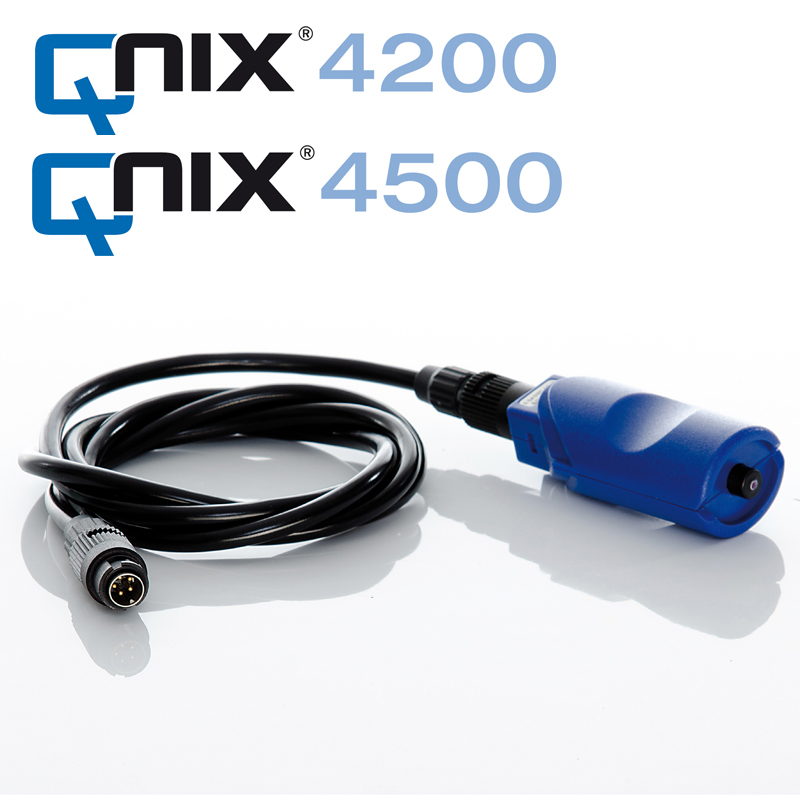

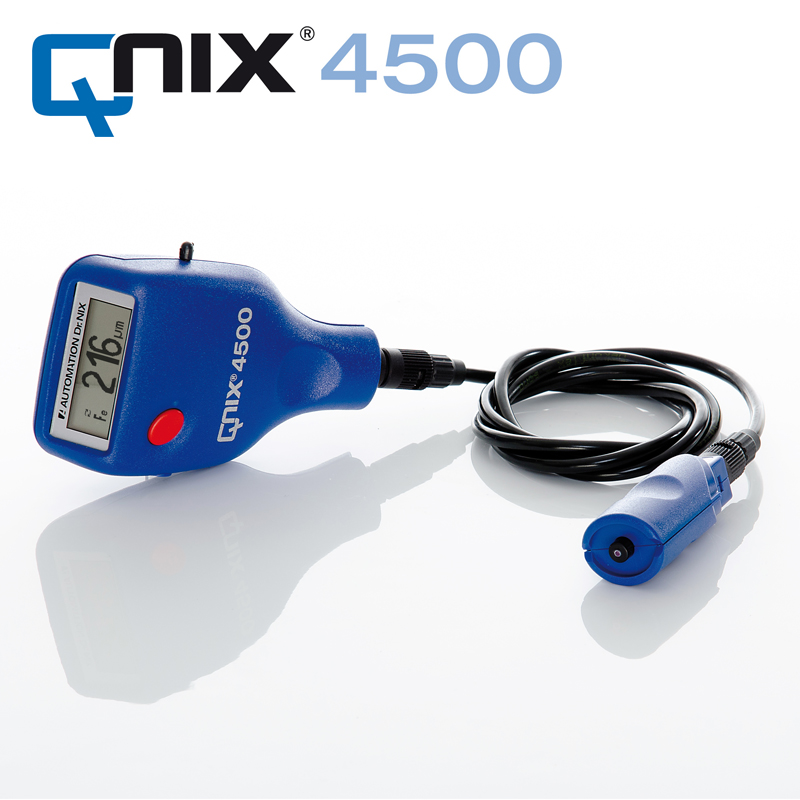

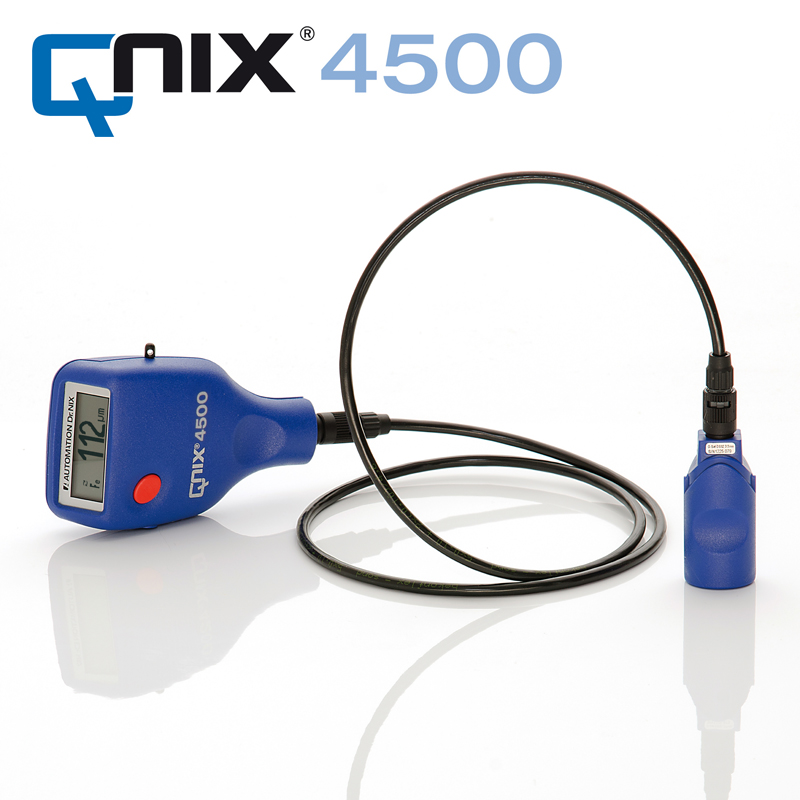

| Probe Type | Integrated or - optional - with 1m cable | |||||||||||||||
| Measuring Range | Fe: 0,0–3000 μm | NFe: 0,0–3000 μm Fe: 0,0–3000 μm | NFe: 0,0–5000 μm |
|||||||||||||||
| Metric system μm/mil | Yes | |||||||||||||||
| Measuring Frequency | Single Measurement: 850 ms | |||||||||||||||
| Display Metric | from 0 to 999 in μm, from 1000- to 3000 in mm (1,00-5,00 mm) | |||||||||||||||
| Resolution | 0,1 μm in 0,0–999 μm range, 0,01 mm in 1,00-3,00 mm (1,00-5,00 mm) range |
|||||||||||||||
| Accuracy acc. to Automation Dr.Nix Standards |
|
|||||||||||||||
| Minimum measuring area | Ø 25 mm | |||||||||||||||
| Minimal Curvature | convex: 5 mm, concave: 25 mm | |||||||||||||||
| Minimal Substrate Thickness | Fe: 0,2 mm | NFe: 0,05 mm | |||||||||||||||
| Display | Digital LCD | |||||||||||||||
| Temperature Range | 0 – 50°C (32 – 122°F) | |||||||||||||||
| Permitted Storage Temperature | -10° C – 60°C (14 – 140°F) | |||||||||||||||
| Power Supply | 2 batteries 1,5 V (AA alcali) | |||||||||||||||
| Dimensions (L x W x H în mm) | 100 x 60 x 27 (with integrated probe) | |||||||||||||||
| Weight (inlc. batteries) | With Integrated Probe: 105 g With Probe with Cable: 147 g |
NFe* Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coatings) on non-ferromagnetic and electrically conductive substrate, for example measuring on aluminium-, zinc-, brass- and certain stainless ( high-grade ) steel-substrates.
