QNix 1500/1500M
Specifications
Attached files:

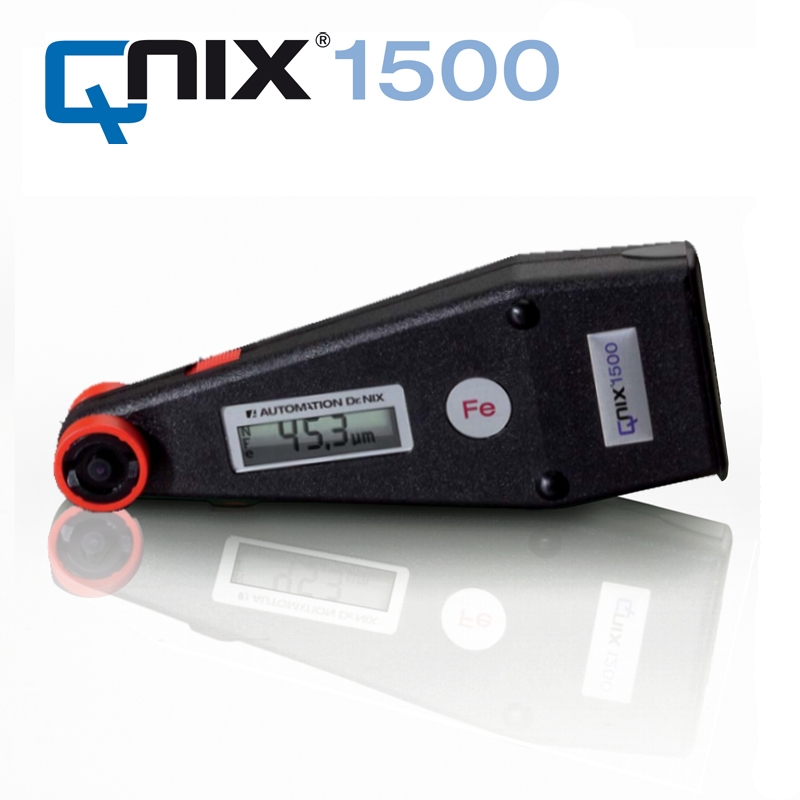

An expert uses QNix® 1500. The classical among the coating thickness gauges – also in the automotive sector. As patented electronic coating thickness gauge with two independently probes for steel and iron as well as non metallic substrates and readable duplex LCD display, QNix® 1500 offers an unusually extensive spectrum of use. Extended measuring range up to 5000 μm. The flat design of this gauge allows for measurements at difficult-to-access points. The simple and flexible use, even at wide stretching surfaces is appreciated by automobile appraisals around the globe. Automobile manufacturers and auto body shops trust in this gauge.
Precise measurements on steel and aluminum
Both non-magnetic coatings on steel and iron and all isolating coatings on non-ferrous metals such as Aluminium, Copper, Zinc can be measured with the direct integrated separate probes. Easy. Precise. Problem-free and reliable: No calibration, no probe change. The wide measuring range makes the QNix® 1500 a small universal genius. The best in its class.
Product advantages are customer advantages:
- Large measuring range up to 5000 μm.
- Integrated Fe / NFe probe with nonwearing ruby tip for long-term use with highest precision over the entire measuring range.
- No calibration required.
- Ideal for wide stretching surfaces.

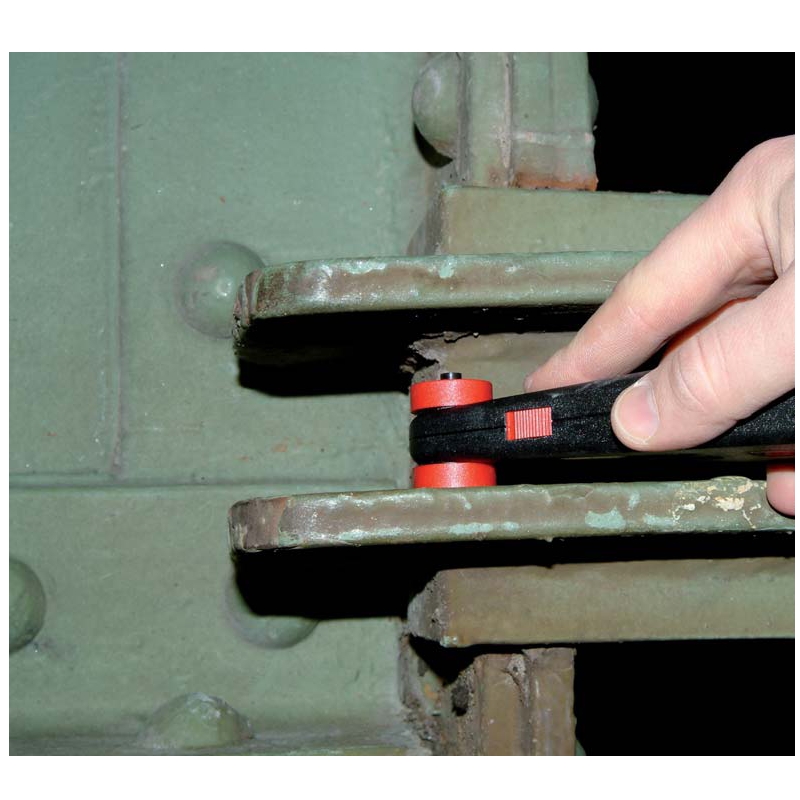

- Simply measure at difficult-to-reach places.
- High reliability and precision even undertough operating conditions.
- Automatic ON/OFF switching.
- No switching between measuring range required.
- Comfortable one hand operation.
- Storage of last reading.
- Readable duplex LCD display.
- V-groove for safe measurements on axles and rods.
- 9-Volt-Block battery for many thousands of measurements.
Scope of delivery
- Coating thickness gauge QNix® 1500, QNix® 1500 M or QNix® 1200.
- 9-Volt-Block battery (alkaline).
- Gauge carrying case with reference plates.
- Free certificate of calibration.
- Instruction manual.
- QNix® 1500 M with memory, statistics functions and universal interface.
- USB Interface cable or RS 232 Interface with plug and connector.
- PC software for data selection and processing (Windows 98 and above).
| Principle of operation | Two magnetic measuring principles: Fe: Magnetic Flux/Hall Effect (Fe*) NFe: Eddy Current (NFe*) |
| Standards | DIN EN ISO 2808, DIN 50981, DIN 50984, ISO 2178, BS 5411 (3&11), BS 3900 - C5, ASTM B 499, ISO 2360, ASTM D 1400, ASTM D 1186, ASTM D 7091 |
| Probe Type | Integrated |
| Measuring Range | Fe: 0,0–5000 μm | NFe: 0,0–5000 μm |
| Metric system μm/mil | Yes |
| Measuring Frequency | Single Measurement: 1250 ms |
| Display Metric | μm in measuring range 0-999 μm mm in measuring range 1,00-5,00 mm |
| Resolution | 0,1 μm in the measuring range 0,0–99,9 μm 1 μm in the measuring range 100–999 μm 0,01 mm in the measuring range 1,00 – 5,00 mm |
| Accuracy acc. to Automation Dr.Nix Standards | ±(1 μm + 2%*) in the measuring range 0,00–999 μm ±3,5 %* in the measuring range 1–5 mm (*) of reading |
| Minimum measuring area (in mm x mm) | 10 x 10 |
| Minimum curvature | convex: 5 mm, concave: 25 mm |
| Minimum Substrate Thickness | Fe: 0,2 mm | NFe: 0,05 mm |
| DIsplay | Digital LCD |
| Temperature Range | 0 – 50°C |
| Storage Temperature | -10° C – 60°C |
| Battery | 1 x 9 V battery |
| Dimensions (L x l x I în mm) | 166 x 64 x 34 |
| Weight incl. the battery | approx. 150 g |
NFe* Measuring of non-ferromagnetic and electrically non-conductive coatings (insulating coatings) on non-ferromagnetic and electrically conductive substrate, for example measuring on aluminium-, zinc-, brass- and certain stainless ( high-grade ) steel-substrates.
