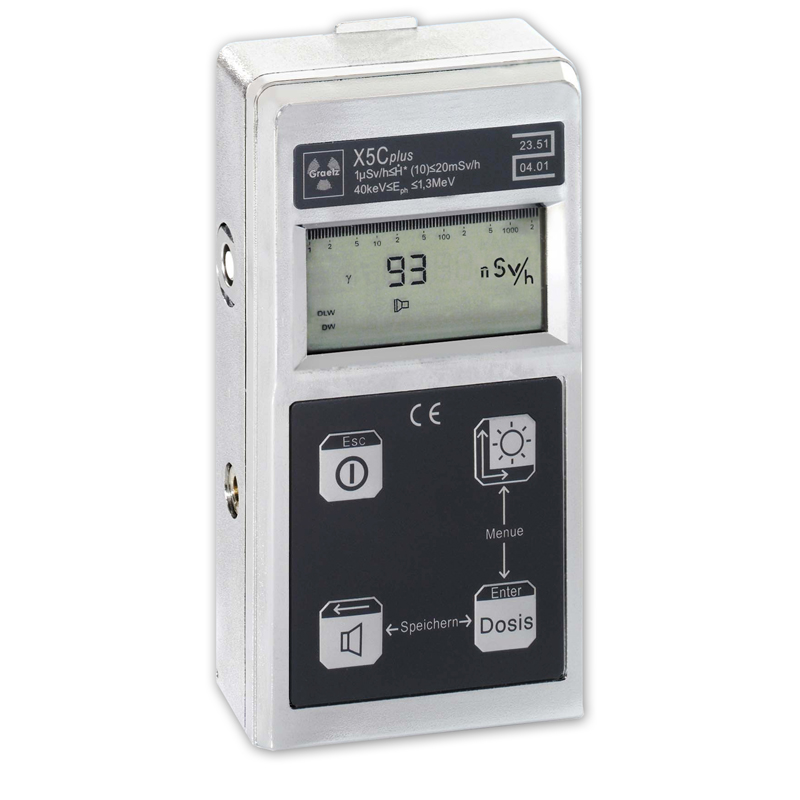

X5C Plus Dose Rate Meter
Specifications
Dose rate measuring system with dose indication and function for personal raidation protection when handling ionising radiation, with RS-232 interface and connection facility for an external probe.
Features:
- dose rate meter for measuring gamma radiation and X-rays
- measurand: Ḣ*(10) (ambient dose rate equivalent)
- detector: energy compensated GM tube
- large, digital indication of measured values on LC-display (illuminable)
- selectable dose rate or dose indication with integration time
- additional quasi-analogue indication of dose rate (3.5 decades, logarithmic bargraph)
- indication of peak and average dose rate value
- 4 free programmable dose and dose rate alarm thresholds
- automatic or manual storage of measured dose rate values together with date and time
- evaluation/indication of residual time for staying in the current radiation field with regard to the maximum allowed dose
- switchable acoustic single-pulse indication
- clear menu-driven user navigation for easy operation, partly secured by password
- storage of set parameters even when the device is switched off or during battery change
- continuous self-testing and monitoring ensure high reliability
- compact metallized housing made of high impact-proof plastic, easy to decontaminate, protection class IP67
- RS-232 interface
- basic unit can be combined either directly or by probe cable with various probes (see separate leaflet): - for extending the measuring range up to 10 Sv/h - for detecting α-, β- and γ-radiation - for measuring in liquids - for measurements at „hard-to-get-to“ places - Telescope Probe DE for measurements from a safe distance - Scintillation probe 2002 for measuring low dose rates
| Characteristics: | |
|---|---|
| Radiation type: | gamma and roentgen |
| Calibration | With Gamma Cs 137 radiation |
Dose ranges:
|
0 nSv/h ≤ Ḣ*(10) ≤ 20 mSv/h 0 nSv – 10 Sv 1,0 µSv/h ≤ Ḣ*(10) ≤ 20 mSv/h |
| Energy range: | 40keV – 1,3 MeV |
| Dose alarm thresholds | 4 preset values in the range of 1 µSv – 10 Sv |
| Dose rate alarm thresholds | 4 preset values in the range of 1 µSv/h – 1.5 Sv/h |
| Temperature range: | -30°C ~ +60°C |
| Protection type | IP 67 |
| Dimensions | 152 x 82 x 39 mm |
| Weight | approx. 400 gr. |
| Power Supply | 9V battery 6LR61 |
| Authorizations | PTB (Physikalisch-Technische Bundesanstalt) ASR nr. VI 203/2009 ISO 9001 Warranty 1 year |
|
Optional probes:
- 18509 CE
- 18529 CE
- 18545 CE
- 18550 CE
- DE telescope probe ( 920 ~ 4000 mm length)
|
Measuring range: 50 µSv/h – 1 Sv/h
Measuring range: 0,5 mSv/h – 10 Sv/h
Measuring range: 150 nSv/h – 200 µSv/h Measuring range: 10 µSv/h – 20 mSv/h Measuring range: 1,5 µSv/h ≤ Ḣ*(10) ≤ 10 Sv/h |
