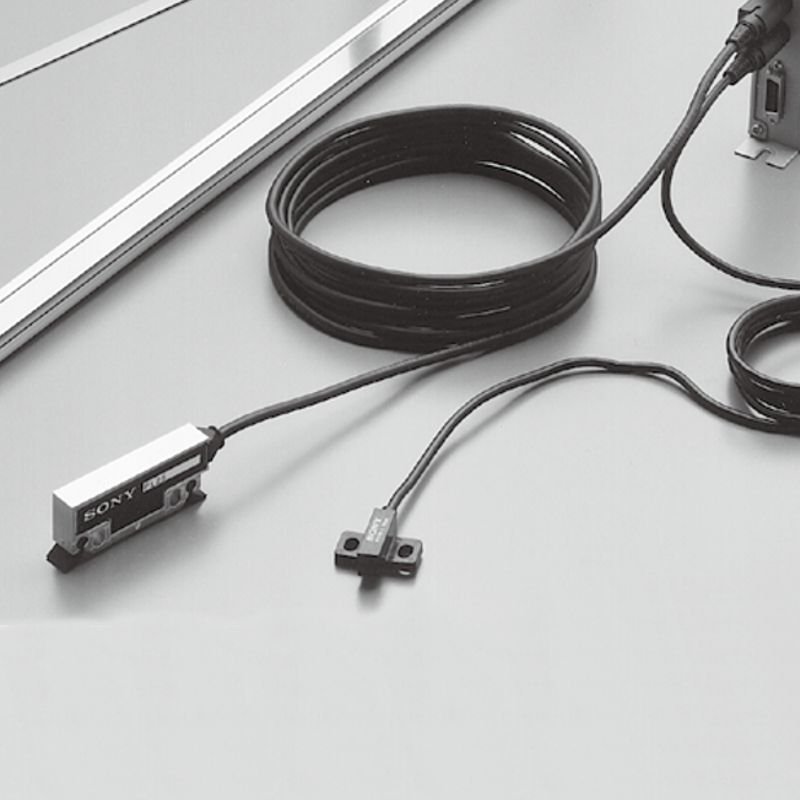

PL20C Read Head Cable unit
Specifications
Attached files:
Read Head Unit SL110/SL130
- Excellent resistance to workshop conditions (IP65)
- Resistant to oil, dirt, vibration and shock.
- Accuracy: 10 μm (with PL20C)
- Max. response speed: 300 m/min (varies with the read head and settings)
- Output signal: A/B quadrature (with PL20C)
| Specificaţii | ||||||
|---|---|---|---|---|---|---|
| Model | PL20C-3/-3C | PL20C-5/-5C | PL20C-10/-10C | PL20C-15/-15C | PL20C-20/-20C | PL20C-30 |
| Lungime cablu | 3 m | 5 m | 10 m | 15 m | 20 m | 30 m |
| Semnal ieșire | A/B cuadratură | |||||
| Rezoluție | 10 μm | |||||
| Viteza maximă de răspuns: | 300 m/min | |||||
| Cuplu de strângere șurub la montarea capului de citire | 0,7 ~ 1,1 Nm | |||||
| Temperatura de lucru | 0ºC ~ +45ºC | |||||
| Temperatura de depozitare | -10ºC ~ +50ºC | |||||
