Optimax 2010 NDT
Specifications

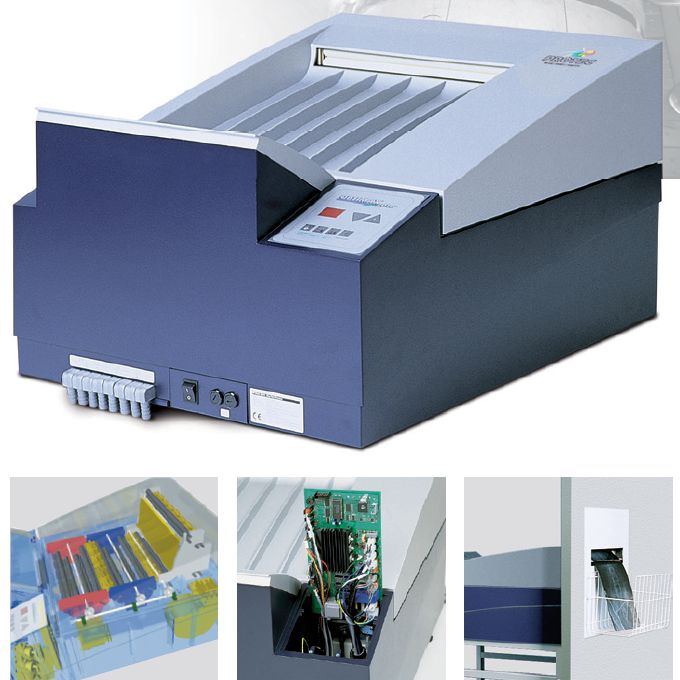

OPTIMAX 2010 NDT Industrial X-ray film processor
The OPTIMAX 2010 NDT is an x-ray film processor especially optimized for the development of industrial films. By applying appropriate films and chemicals designated for industrial applications, it ensures size independent optimum image quality.
The OPTIMAX is an innovative table-top processor for film types up to a width of 35 cm (14“). The integrated stand-by mode reduces your water and energy consumption. The film detection with a micro sensor enables intelligent and economic replenishment depending on the processed film surface. Because of that the OPTIMAX saves chemicals and provides a constant high quality of your image.
With the simple control panel the tanks can easily be filled during the warm-up cycle, and the developer temperature can be set. Acoustic and visual controls signal the readiness for processing of the next film. The anti-crystallisation and antioxidation programs in combination with the continuous circulation of the chemicals and the thermostat for the developer ensure constant high image quality.
. Specifications:
| Dimensions (L/W/H): | 77 x 59 x 42 cm |
| Weight (empty/filled): | 35/50 kg |
| Film formats: | min. 10 x 10 cm – max. 35 x ∞ cm |
| Film types: | sheet and rollfilm |
| Processing time: | 90/135/167 sec (factory set) |
| Capacity: | 10 x 10 = 840 films/h (3 x paralel) 24 x 30 = 129 buc. films/h 43 x 35 = 75 buc. films/h |
| Developer temperature: | 28ºC - 37ºC |
| Dryer temperature: | max. 65ºC |
| Film detection: | 2 microsensors |
| Replenishment rate: | 150 – 1500 ml/m2 |
| Replenishment containers: | optional 12 L or 25 L |
| Anti Oxidation: | In 60 min. intervals |
| Anti-Cristallisation: | în 20 min. intervals |
| Program memory: | 2 programs |
| Tanks volumes (D/F/W): | 5 L/ 5 L / 5 L |
| Water consumption: | 1,9 L/min during prcessing |
| Water consumption in Eco mode: | 0,95 L/min. during processing |
| Water consumption în Stand-by mode: | 0,0 L/min. |
| Overfilling protection: | level sensor |
| Energy consumption: | 1,4 kWh – during processing; 0,12 kWh – in stand-by mode. |
| Electrical connections: | 230 V / 8,8 A / 50 Hz |
| Water connections: | ¾ inch ; 2 – 10 bar |
| Special function: | automatic tank filling with chemicals |
