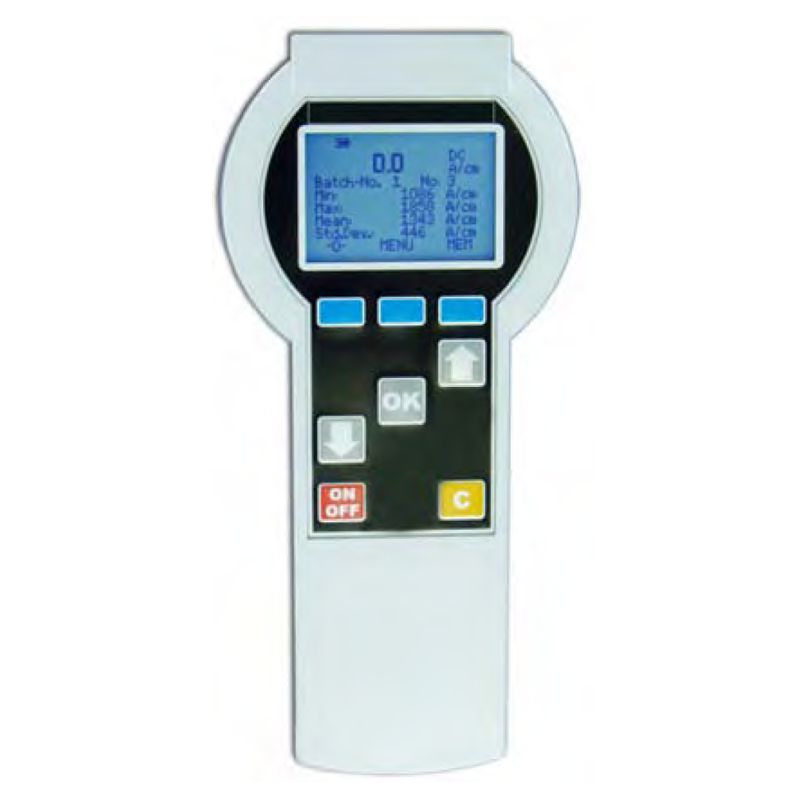

MP2000 Magnetic Field Meter/Gaussmeter

           With the magnetic field meter LIST-MAGNETIK MP-2000, we offer you a first class, high-end product, with externally connectable axial and tangential field probes. With the easy to use device, you can precisely measure magnetic DC and AC fields as well as pulse fields of all kinds. The range of application ranges from the earth's magnetic field to a field strength of 40,000 A/cm, switchable in Gauss/Oersted and Tesla. The built-in data logger, the combined digital and analog display as well as the optional data transfer via USB, allows flexible use. Especially at high magnetic field strengths, an absolutely interference-free and precise measurement is required. For this reason, a microcontroller digitizes and linearizes the analog measuring signals of the Hall sensor into the probe in the measuring probes of the MP-2000.

             The fast peak value memory allows measurements in pulse fields from 0.1 m/sec. In addition, an oscilloscope for the representation of dynamic magnetic fields can be connected via the special probe P-T4A with analog output. A further advantage is that the probe cable can be plugged in on both sides connects the display unit and the probe and can be easily replaced in the event of a cable break.

             The universally applicable Magnetic Field Tester MP-2000 tests for residual magnetism, measures magnetic fields of all types and locates stray detectors for crack detection.

            With a magnetic field meter / magnetometer / Gaussmeter / Teslameter (all names describe the same) you can see small differences in the strength of the magnetic field during the magnetic field measuring. From low field values just above the Earth's magnetic field, via residual magnetism / remanence with low A / cm or Gauss / Oersted residual magnetic field values up to peak fields, the magnetic field meters from List-Magnetik are durable and you get reproducible field strength values during the magnetic field test. In addition, we offer a calibration standard (reference magnet), with which you can always check your magnetic field tester for accuracy.

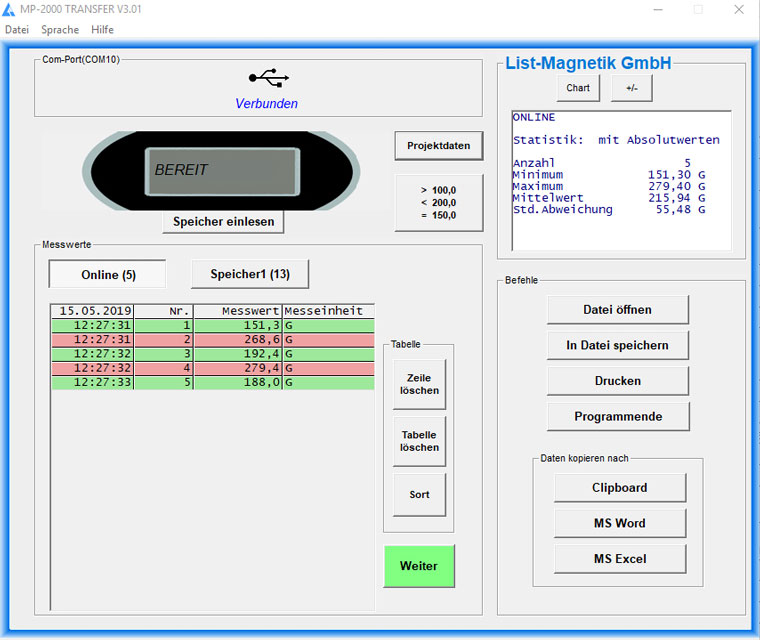

Manage and send measurement data with a free application: so that you can easily manage and send your measurement data, the MP-2000 TRANSFER application for MP-2000 is available for the PC.
