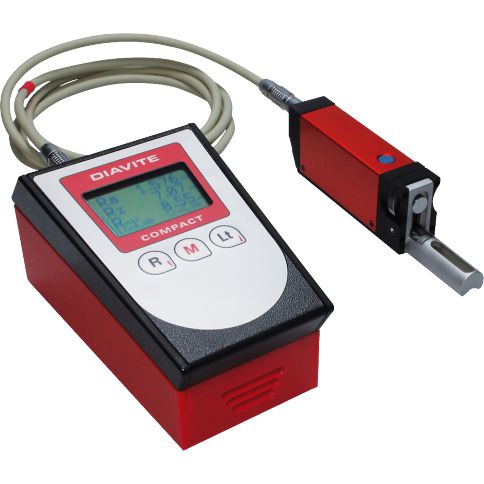

COMPACT II Surface Roughness Tester
Specifications
Attached files:
High precision surface roughness meter for universal use in workshop and inspection room:
- Automatic calibration
- Memory for 50 measurements
- 5 measuring length, all selectable between 0.5 and 15.0 mm
- Measuring speed selectable
- Calibration for max. 8 tracers
- 8 measuring programs
- Choice of many types of tracers to solve nearly all measuring tasks, also customer specific ones
- User friendly comprehensive multilingual menu guidance
- Tolerance indication for measuring values exceeding permissible allowance set
- Key lock for lt, lc and R to prevent any settings being changed by mistake during measuring procedure
- USB output for data transfer (option: Bluetooth)
| Technical Characteristics | |
|---|---|
| Measuring Range: | Ra, Rq: 0 - 20 µm Rz, Ry, Rp, Rt, R3z: 0 - 350 µm |
| Parameters: | Ra, Rz, Rmax, R3z,Rt,Rq, Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, Rpc |
| Cross-wavelength (cut-off): | 0,5 mm |
| Dimensions: | 141 mm x 56 mm x 48 mm |
| Power Supply: | rechargeable batteries |
| Units: | mm or inch |
| Resolution: | Ra, Rq 0,001 µm fo others: 0,01 µm |
| Memory: | internal, USB interface |
